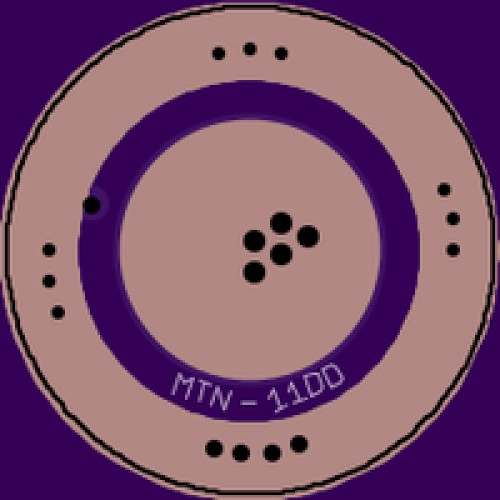

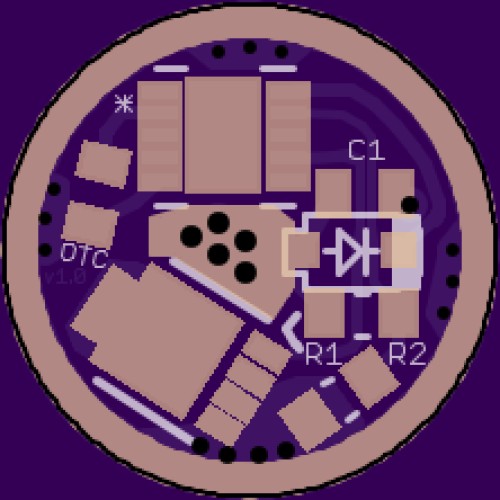

This is the bare PCB you need to build your own tiny 11mm FET driver! DIY parts kit available here.
PCB Thickness:
- 0.8mm
- 1.6mm
Parts List:
- C1: 10uF 0603 (X5R or better preferred)
- OTC: 1uF 0603 (X7R preferred)
- R1: 19.1K 0603 1%
- R2: 4.7K 0603 1%
- Diode: SOD-323 Schottky
- MCU: attiny13a-MMU
- FET: LFPAK33
11mm MTN-11DD PCB - V1.0
- Product Code: PCB-MTN-11DD-v1.0
- Availability: 9
-
$0.36
