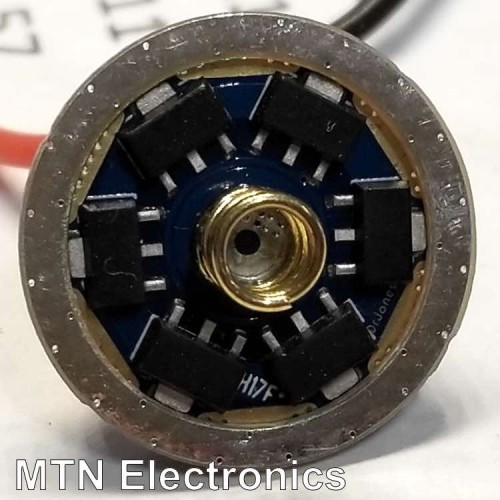

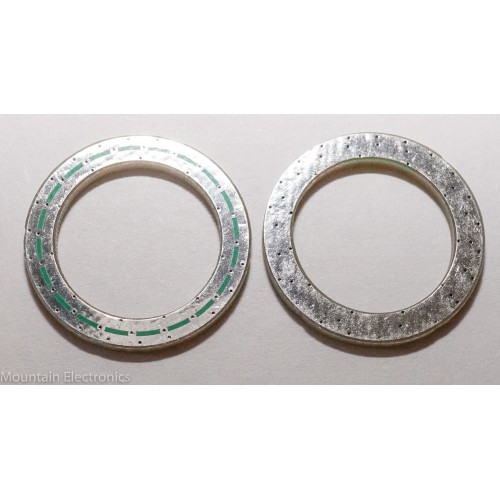

This board is used to adapt a smaller driver (such as the 17mm H17Fx) into a 22mm driver cavity.
Typically, you will solder the driver on top of the adapter, so that the battery presses the driver into the PCB instead of against it (the solder does not provide sufficient mechanical strength).
- Thickness: 1.6mm
- Outside Diameter: 22mm (may be sanded down if needed)
Only recommended for FET and 7135 drivers. Not recommended for Buck/Boost drivers.
17mm to 22mm Driver Adapter PCB
- Product Code: 17-22mm-ADAPT-1
- Availability: 87
-
$0.69
