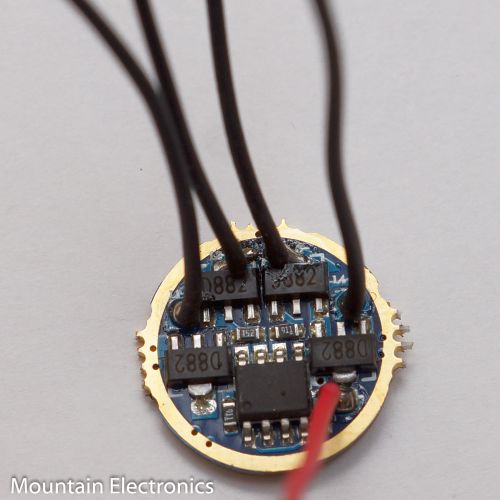

For use with the multi-color XM-L LED, also available from this store.  Includes a spring that you can optionally solder onto the driver depending on your required configuration.  If you don't feel comfortable soldering the spring, I will solder it on at no additional cost to you.  Just check the option box.

• Input voltage: 3-4.2V
• Output current: 600-700mA for each color/die
• PCB diameter: 17mm

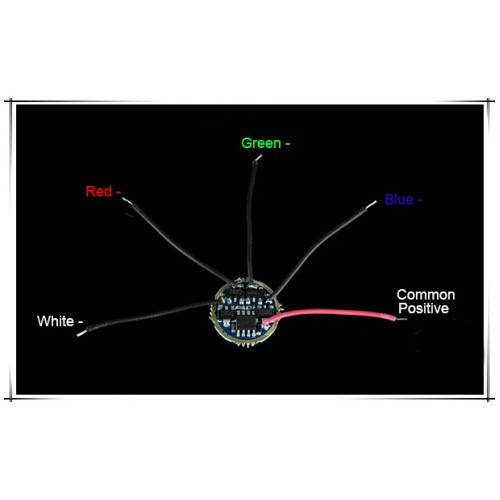

• Red lead - Positive, Black leads - Negative (common positive)
• Gold plated contacts
• 2 Mode Groups
• No Mode Memory

​

Modes:

Group A (Color):

White High Output

Red High Output

Green High Output

Blue High Output

White-Red-Green-Blue Strobe 8Hz

Red-Blue Police Strobe

Red Blink 1Hz

Group B (Dynamic White):

Die1 & Die3 High Output

Die2 & Die4 High Output

All Dies Strobe 8Hz

Die1 High Output

Die2 High Output

Group A is default, soldering the two stars together will switch to group B.
